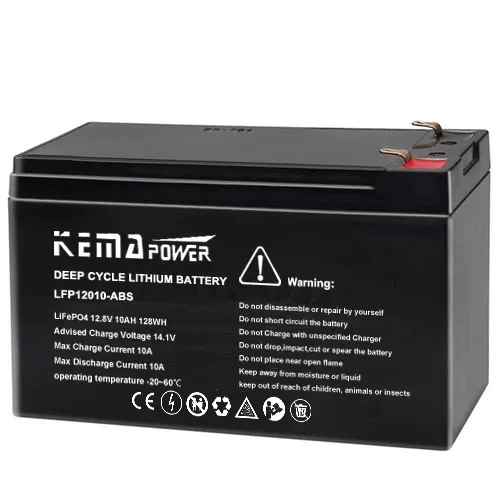

6000 Cycles Prismatic 12V Li
Lead-Acid Alternative LiFeP04 Lithium BatteryLFP-ABS 23/48V, 1.28-5.12KWH KEY FEATURES 24VDC 48VDC Deep Cycle Energy sto
Send your inquiryDESCRIPTION
Basic Info.
| Model NO. | LFP-ABS |
| Rechargeable | Yes |
| Size | Large |
| Nominal Voltage | 12V |
| Product Name | Lifep04 Battery LFP-ABS |
| Cycle Life | 6000 Times |
| Transport Package | Seaworthy Packing |
| Specification | 50-300 |
| Trademark | KEMAPOWER |
| Origin | China |
| HS Code | 8507600090 |
| Production Capacity | 50000PCS/Yer |
Product Description
Lead-Acid Alternative LiFeP04 Lithium BatteryLFP-ABS 23/48V, 1.28-5.12KWH
KEY FEATURES
- 24VDC 48VDC Deep Cycle Energy storage Lead-acid alternative LiFePo4 lithium battery
- Capacity 25.6VDC 50Ah 100Ah 120Ah 200AH, 51.2VDC 50Ah,60AH 100AH
- 6000 Cycle life(80% DOD@25ºC), 10 times more than AGM battery
- Discharge DOD over 95%, 25-50% more than AGM battery
- Compact Size and light weight , > 50% smaller and lighter than AGM battery
- Wide Compatibility, Cooperate With Most Inverters
- Embedded BMS, Full protection and Balance charge discharge
- LCD Display option
- Bluetooth communication option
- Series connection option. Max to 48VDC
TECHNICAL SPECIFICATIONS
PRODUCT DISPLAY LFP24050-ABS LCD DISPLAY OPTION Bluetooth Communicatiion ( Option )| MODE | LFP24050-ABS | LFP24100-ABS | LFP24120-ABS | LFP24200-ABS | LFP48050-ABS | LFP48060-ABS | LFP48100-ABS | |
| Battery Pack Module | Rated Voltage | 25.6VDC | 25.6VDC | 25.6VDC | 25.6VDC | 51.2VDC | 51.2VDC | 51.2VDC |
| Rated Capacity Ah/WH | 50AH | 100AH | 120AH | 200AH | 50AH | 60AH | 100AH | |
| Rated Energy | 1280WH | 2560WH | 3072WH | 5120WH | 2560WH | 3072WH | 5120WH | |
| Cycle Life | 1C 100% DOD Charge/Discharge, after 3000 Times, Cap. Retention*≥80%, .25ºC . 6000 Cycle under 80% DOD Charge/Discharge, reach 6000 Cycle | |||||||
| Design Life time | Over 10 years | |||||||
| DOD | > 95% | |||||||
| IP Grade | IP65 Indoor | |||||||
| Case and Output Connector | ABS ,M8 bolt | ABS ,M8 bolt | ABS ,M8 bolt | ABS ,M8 bolt | ABS ,M8 bolt | ABS ,M8 bolt | ABS ,M8 bolt | |
| Load Capacity | ≤1280W | ≤2560W | ≤3072W | ≤5120W | ≤2560W | ≤3072W | ≤5120W | |
| internal resistance | ≤50mΩ | ≤80mΩ | ≤80mΩ | ≤80mΩ | ≤50mΩ | ≤80mΩ | ≤50mΩ | |
| Protection Function | Over charge /Over Discharge/Over Temperature/ Over Current /internal Short Circuit protection and Balance Modular and Cell Charge and discharge ( Option ), by Embedded BMS | |||||||
| Battery Pack Charge/Discharge (Customizable) | Recommended Charge Current | ≤25A | ≤50A | ≤60A | ≤100A | ≤25A | ≤30A | ≤50A |
| Max. Continue Charge Current | 50A | 100A | 120A | 200A | 50A | 60A | 100A | |
| Recommended Charge Voltage | 28.2V | 28.2V | 28.2V | 28.2V | 56.4V | 56.4V | 56.4V | |
| Recommended Discharge Current | 25A | 50A | 60A | 100A | 25A | 30A | 50A | |
| Max. Continue Discharge Current | 50AMP | 100AMP | 120AMP | 200AMP | 50AMP | 60AMP | 100AMP | |
| Recommended Over Discharge Voltage | 22.4V | 22.4V | 22.4V | 22.4V | 44.8V | 44.8V | 44.8V | |
| Battery Cell | Cell type | LiFepo4 | ||||||
| Rated Capacity Ah | 50Ah | 50AH/100Ah | 120Ah | 200Ah | 50Ah | 60Ah | 100Ah | |
| Rated voltage V | 3.2VDC | 3.2VDC | 3.2VDC | 3.2VDC | 3.2VDC | 3.2VDC | 3.2VDC | |
| Pack Connection | 8S1P | 8S2P/8S1P | 8S1P | 8S1P | 16S1P | 16S1P | 16S1P | |
| BMS Parameter (Customizable) | Charge method | CC To 3.65V, CV to 0.05C and then Cut off | ||||||
| Max Pulse Charge Current | 120% * Max. continue Charge Current | |||||||
| Over charge Protection voltage | 29.2V | 29.2V | 29.2V | 29.2V | 58.4V | 58.4V | 58.4V | |
| Over Charge Voltage Return | 27.6V | 27.6V | 27.6V | 27.6V | 55.2V | 55.2V | 55.2V | |
| Max Pulse Discharge Protection Current | 300% * Max. Continue Discharge Current | |||||||
| Over Discharge Protection Voltage | 16V | 16V | 16V | 16V | 32V | 32V | 32V | |
| Over Discharge Return Voltage | 20V | 20V | 20V | 20V | 40V | 40V | 40V | |
| Over current protection delay time | 20 ±5 ms | |||||||
| Short protection delay time | 200-600 us. | |||||||
| LCD Display / WiFi Communicatiion ( Option ) | LCD Display , WiFi Communicaitoin by App or PC | |||||||
| Series connection ( Option ) | LPF Litepo4 battery Series and Parallel Connectioin Function is option . Max 4 pcs in series @ 12VDC . | |||||||
| Battery Standard | IEC62619, CE, UN38.3, MSDS | |||||||
| Operation temperature | -20-60ºC | |||||||
| Storage Temperature | 0-45ºC | |||||||
| Product Size ( Around mm) Customizable | 330*220*173 | 552*240*218 | 552*240*218 | 521*269*220 | 552*240*218 | 552*240*218 | 521*269*220 | |
| Product Weight ( Around Kg) | 12.5kg | 24kg | 28Kg | 40kg | 24kg | 28kg | 40kg | |
ELSE APPLICATION: RV Car, Marine, Golf Car, Buggies,Remote Monitoring, Switching applications and more, UPS
