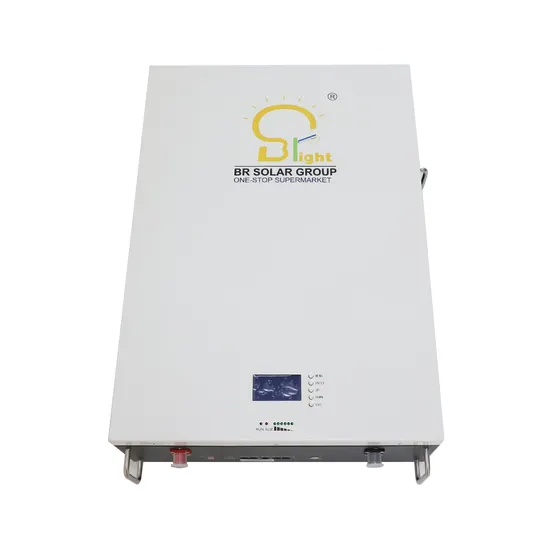

Products

DESCRIPTION

Basic Info.

Model NO.	BR-BLH Lithium Battery
Cycle Life	More Than 6000 Times
Model No.	RS-LFP48V100ah
Battery Size	680*485*180mm
Material	LiFePO4 Battery
Display	LCD Indicator
Optional Part	Storage Battery
Battery Cell	3.2V 50ah Prismatic Cell
Inverter Matched	Solax, Deye, Goodwe, Growatt, Victron, Sofar, Gmde
Type	Li-ion Battery
Cathode Material	LFP
Rechargeable	Yes
Size	680*485*180mm
Transport Package	Standard Export Carton with Foam Inside
Specification	600*300*520mm
Trademark	BR SOLAR
Origin	Jiangsu, China(Mainland)
HS Code	8507600090
Production Capacity	100000PCS/Month

Product Description

Specification For Lithium Battery



The whole module is non-toxic, non-polluting and environmentally friendly; Cathode material is made from LiFePO4 with safety performance andlongcycle life; Battery management system(BMS)has protection functions includingover-dis-charge, over-charge, over-current and high/low temperature; Small size and light weight, comfortable for installation and maintenance.

Packing & Shipping

Project of BR SOLAR
Our Projects are applied all around the World We Choose A Quality Material, Quality Is Our Culture.So Our Solar Products Have Been Successfully Applied In More Than 110 Countries Including UN Projects and NGO Projects.

Certificates Of BR SOLAR

Payment Terms and Delivery
Welcome to visit our company website for more information:assolar.en.made-in-china.com

Model	BLH-4800W	BLH-7200W		BLH-9600W
Nominal Voltage	48V (15series)
Capacity	100Ah	150Ah		200Ah
Energy	4800Wh	7200Wh		9600Wh
Internal Resistance	≤30mΩ
Cycle Life	≥6000 cycles@ 80% DOD, 25ºC, 0.5C ≥5000 cycles@ 80% DOD, 40ºC, 0.5C
Design Life	≥10 years
Charge Cut-off Voltage	56.0V±0.5V
Max. Continuous Work Current	100A/150A(Can choose)
Discharge Cut-off Voltage	45V±0.2V
Charge Temperature	0°C~60°C (Under 0°C extra heating mechanism)
Discharge Temperature	-20°(~60°( (Under 0°Cwork with reduced capacity)
Storage Temperature	-40°C~55°C@ 60% 25% relative humidity
Dimensions	680 x485 x180(220)mm
Battery Maximum parallel number	15PCS
Weight	Approx:50kg		Approx:82.5kg	Approx:110kg
Protocol (optional)	RS232-PC, RS485(B)-PC RS485(A)-Inverter,Canbus-Inverter
Certification	UN 38. 3, MSDS, ULl 97 3(Cell),IEC62619(CelI)

Payment Terms	T/T	EXW	30% In Advance, 70% Balance Paid Before Delivery
		FOB
		CFR/C&F	30% In Advance, 70% Against Copy Of B/L
		CIF
	L/C	Total Amount Above USD100,000, We Accept L/C At Sight
	West Union	Total Amount Less Than USD1,000
	PayPal
Delivery Time	15-20 Working Days After Receiving Down Payment
